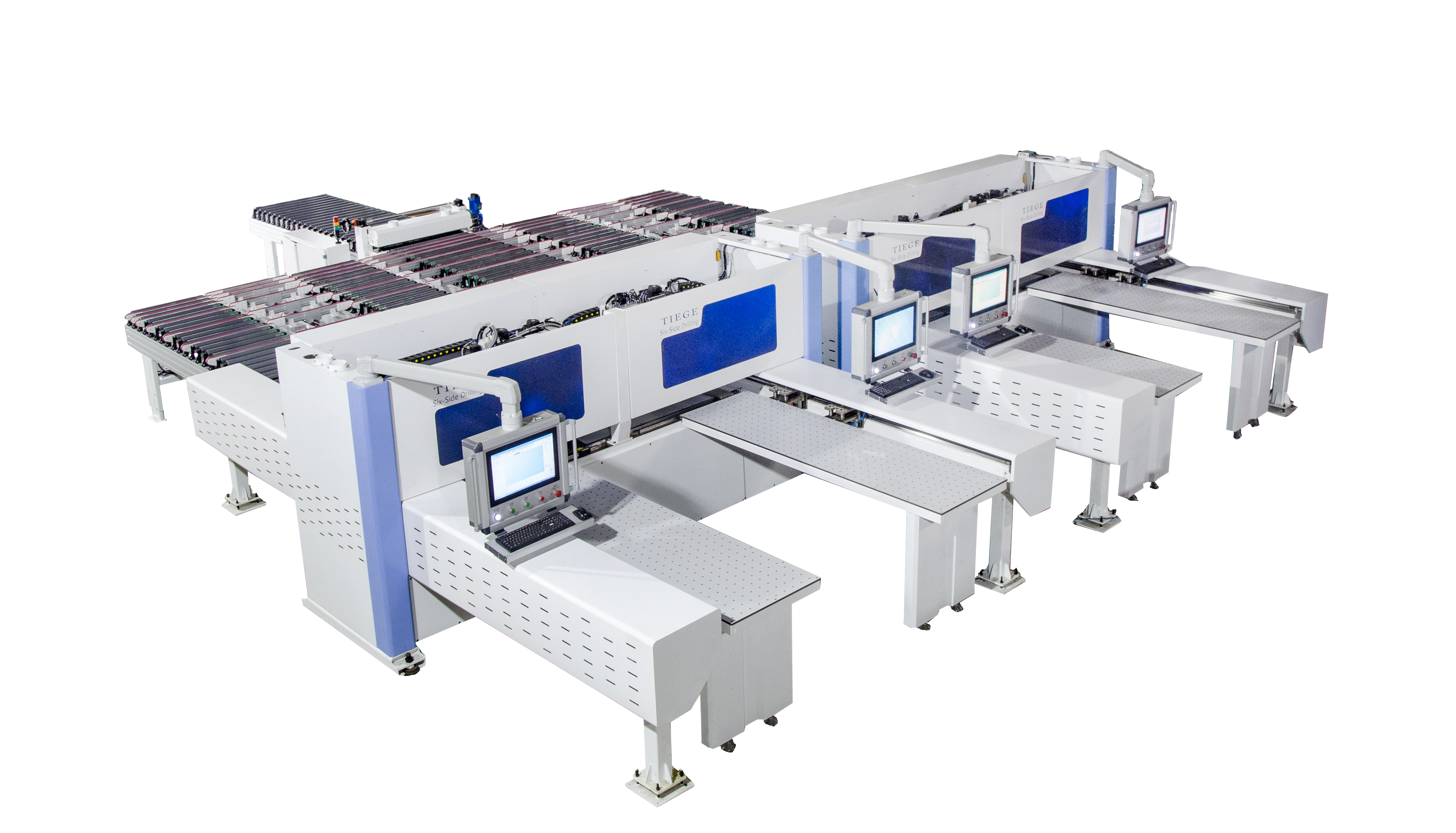

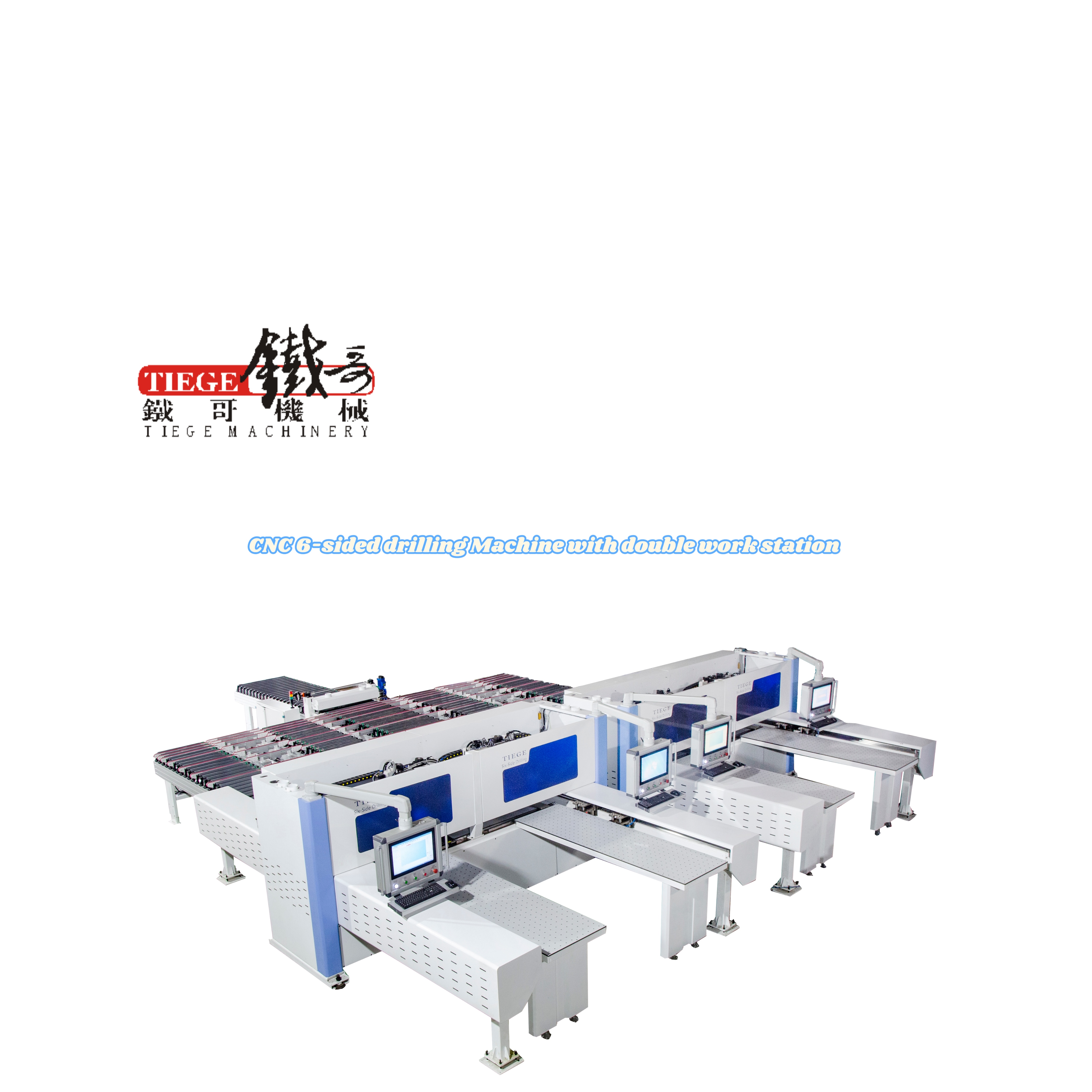

CNC 6-sided Drilling Machine Line with Double Work Station

As a professional manufacturer of CNC 6-side drilling machinery, we are able to offer you a cnc 6-side drilling machine with dual working founctions, depending salable products at competitive price, welcome to order products from our factory.

Key Features of CNC 6-sided Drilling Machine Line With Double Work Station

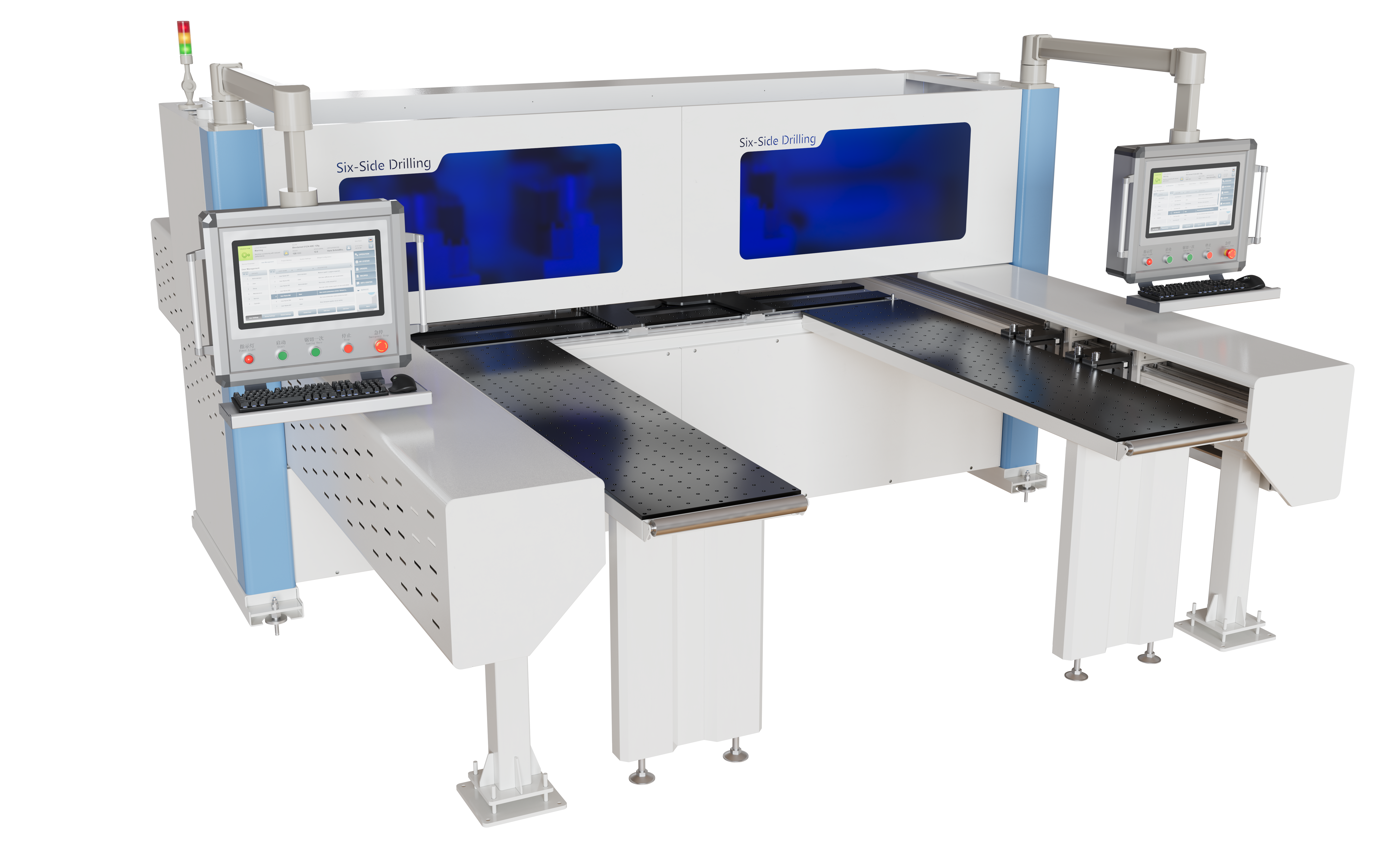

The 6-sides drilling machine with twin station series CNC control which can process six sides of the board continuous and equipped 2 sets high saw and 6-sided drilling heads, greatly improving the processing efficiency and automation.

6-Sided Processing

Full 6-Sided Machining (Top, Bottom, and 4 sides) on all six faces in one operation.

Double Station Design

Two stations working while one operates, the other can be loaded/unloaded, enable non-stop operation and an increase in productivity.

Automatic Loading & Unloading System

Fully integrated with panel feeding systems and stackers for an all-automatic production line.

High-Speed Drilling Units

Dedicated multispindle heads with up to 21 spindles per head; precise drilling; high-speed drilling of through holes.

Milling & Routing Capacity

With a required spindle motor power (3-5.5kW) for grooving, milling, or cut one or hinge slot.

Control System of CNC 6-sided Drilling Machine With Double Work Station

The control system adopts industrial PC, user-friendly interface, supports DXF/MPR format, integrated barcode scanning, and can connect to ERP system for automatic and intelligent management of product.

• User-friendly industrial PC control with touchscreen interface.

• Supports common design software and formats: DXF, MPR, NC, etc.

• Optional barcode scanning system for ERP integration and order traceability.

Technical Specifications

Application Scenarios:

1. Modular kitchen cabinets

2. Wardrobes and closets

3. Office and commercial furniture

4. Customized panel processing for batch and flexible orders

Advantages Over Single - Workstation Models

• 40-60% higher output with dual-station parallel operation.

• Less operators needed - one person can control more than one machine.

• Opportunities for more productive labor in shift-like factory situations.

We’ll never be too far away! Even if you are just looking to boost capacity when manufacturing smart furniture , or if you are simply wanting to move on from standard drilling centers, this line of CNC’s offer the ideal blend of automation, flexibility and productivity.

Tell us your panel size scope and production capacity, then we will tailor the CNC 6-sided drilling machine arrangement and configuration for you.
